Yocto-Pressure-C
This USB pressure sensor can measure gas or liquid pressure up to 10 bars. You can add Ethernet, Wireless or GSM connectivity to this device.

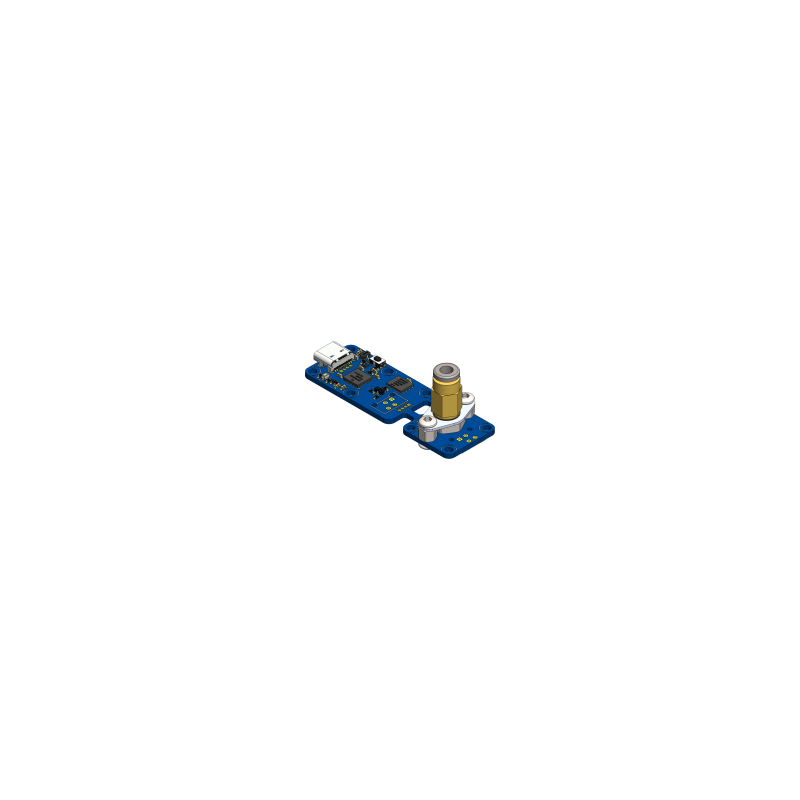

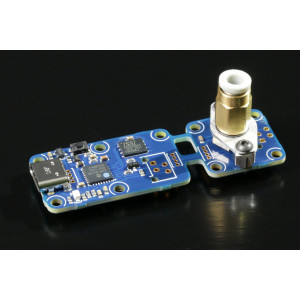

Do you need to monitor a pressurized circuit? The Yocto-Pressure-C might be the solution. This device can measure gas or liquid pressure up to 10 bars through USB. Moreover, it can record measured values on its internal flash for later retrieval when connected again by USB (built-in data logger). The Yocto-Pressure-C can also measure the temperature of the gas/liquid it is in contact with. The device features a SMC "one touch" fitting allowing to connect it to any 4mm tube very easily.
The Yocto-Pressure-C circuit has been designed so that the sensor itself can be moved away from the USB connector by a few meters: simply split the board into two parts and solder a 4-wire cable on the designated pads.
This module is the equivalent of the Yocto-Pressure, but with a USB type-C connector. Both versions can be connected to a USB A, Type C or Micro-B host with the appropriate cable.
This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-n and to a GSM network using a YoctoHub-GSM.
-
Brand
-
ReferencePRSSMK1C
Data sheet
-
Width20mm
-
Length60mm
-
Weight4g
-
USB connectorUSB-C
-
Refresh rate10Hz
-
Measuring range0...10bar
-
Accuracy100mbar
-
Normal operating temperature5...40°C
-
Extended operating temperature-5...60°C
-
Supported Operating SystemsWindows (PC + IoT), Linux (Intel + ARM), macOS, Android
-
Driversno driver needed
-

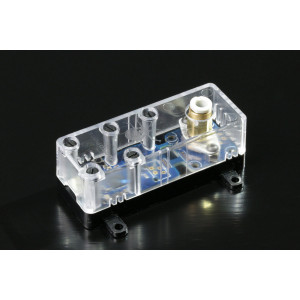

Suggested enclosureYoctoBox-Long-Thick-Black-Press
-
Made inSwitzerland
-
IEC protection classclass III
-
Harmonized tariff code9032.9000
-
ComplianceRoHS III (2011/65/UE+2015/863)
