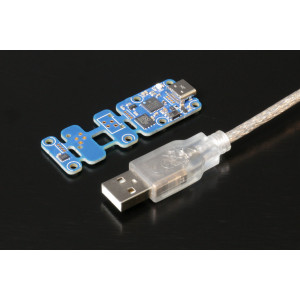

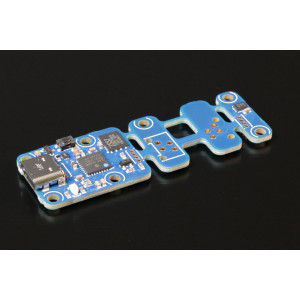

Yocto-Temperature-C
Tiny USB temperature sensor (thermometer), with built-in data logger You can add Ethernet, Wireless or GSM connectivity to this device.
The Yocto-Temperature-C is a USB temperature sensor : it lets you measure the temperature via a USB connection, as well as record the ambient temperature on its internal flash for later retrieval when connected again by USB. This tiny USB thermometer is ideal for monitoring the temperature of a computer or server room and raising an alert.
This circuit has been designed so that the sensor itself can be moved further away from the USB connector by a few meters: simply split the board into two parts and solder a 4-wire cable on the designated pads.
This module is the equivalent of the Yocto-Temperature, but with a USB type-C connector. Both versions can be connected to a USB A, Type C or Micro-B host with the appropriate cable.
This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-n and to a GSM network using a YoctoHub-GSM.
-
Brand
-
ReferenceTMPSNS1C
Data sheet
-
Width20mm
-
Length60mm
-
Weight3g
-
USB connectorUSB-C
-
SensorMCP9804 (Microchip)
-
Refresh rate10Hz
-
Measuring range-40 ... +125°C
-
Accuracy0.25°C
-
Sensitivity0.1°C
-
Normal operating temperature5...40°C
-
Extended operating temperature-30...85°C
-
Supported Operating SystemsWindows (PC + IoT), Linux (Intel + ARM), macOS, Android
-
RoHSRoHS III (2011/65/UE+2015/863)
-
Suggested enclosureYoctoBox-Long-Thin-Black-Vents
-
Cables and enclosuresavailable separately
-
Made inSwitzerland
-
Harmonized tariff code9032.9000
