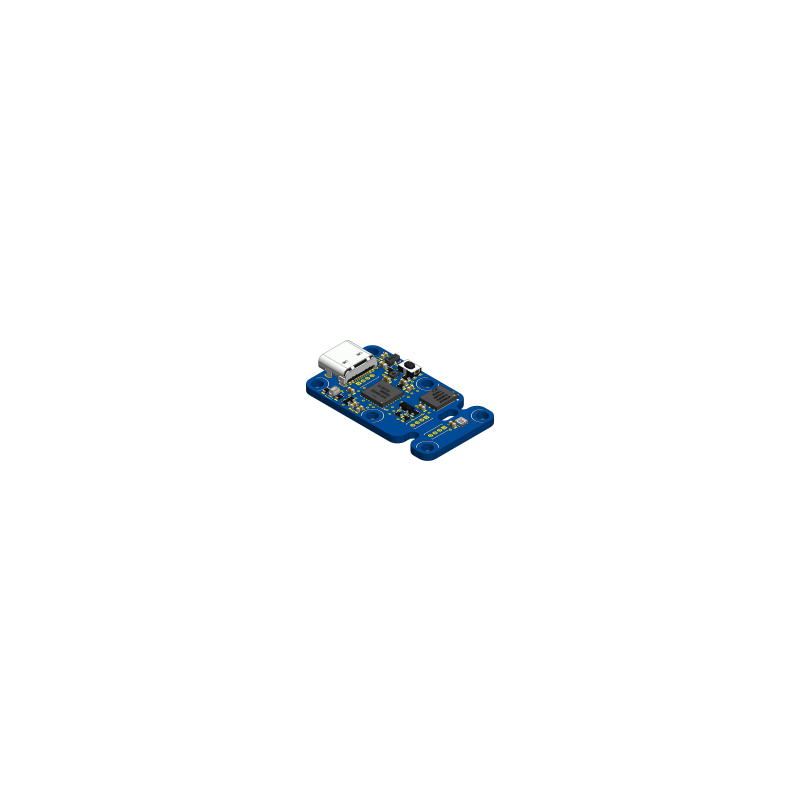

Yocto-Light-V5-C
High sensitivity, large range, ambient light sensor (luxmeter), for measuring light intensity from 0 to 143'000 lux, with built-in data logger. You can add Ethernet, Wireless or GSM connectivity to this device.
The Yocto-Light-V5-C device is a USB ambient light sensor (lux meter) which allows you to measure ambient light. Measurements can be read directly via USB or stored on the device internal flash for later retrieval when connected again by USB.
Version 5 of the Yocto-Light features a particularly wide measurement range: it can measure from 0.001 to 143'000 lux, at a maximum sample rate of 20Hz.

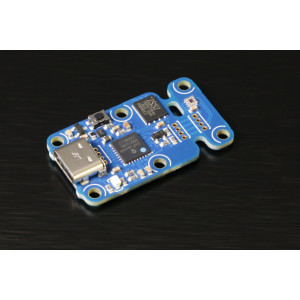

This circuit has been designed so that the sensor itself can be moved away from the USB part by a few meters: simply split the board into two parts and solder a 4-wire cable on the designated pads.

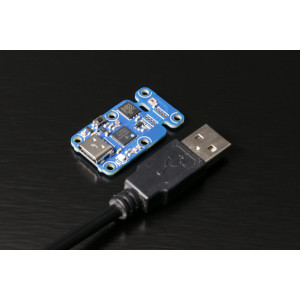

This module is the equivalent of the Yocto-Light-V5, but with a USB type-C connector. Both versions can be connected to a USB A, Type C or Micro-B host with the appropriate cable.
This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-n and to a GSM network using a YoctoHub-GSM.
-
Brand
-
ReferenceLGHTMK5C
Data sheet
-
Width20mm
-
Length35mm
-
Weight3g
-
USB connectorUSB-C
-
Refresh rate20Hz
-
Measuring range0.001..143'000lx
-
Normal operating temperature5...40°C
-
Extended operating temperature-40..85°C
-
Driversno driver needed
-

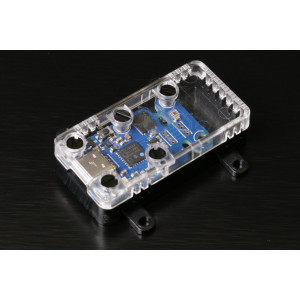

Suggested enclosureYoctoBox-Short-Thin-Black
-
Made inSwitzerland
-
IEC protection classclass III
-
Harmonized tariff code9032.9000
-
API / SDK / LibrairieC++ Obj-C C# VB.NET UWP Delphi Python Java Android LabVIEW
-
API / SDK / Librairie (seul.TCP)Javascript Node.js PHP
