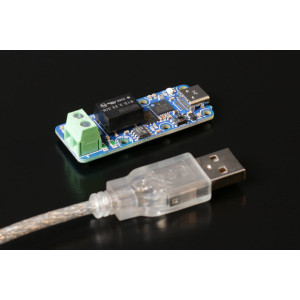

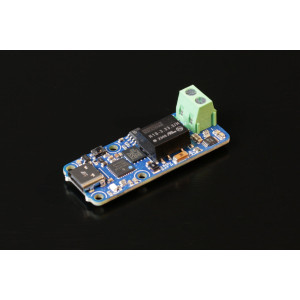

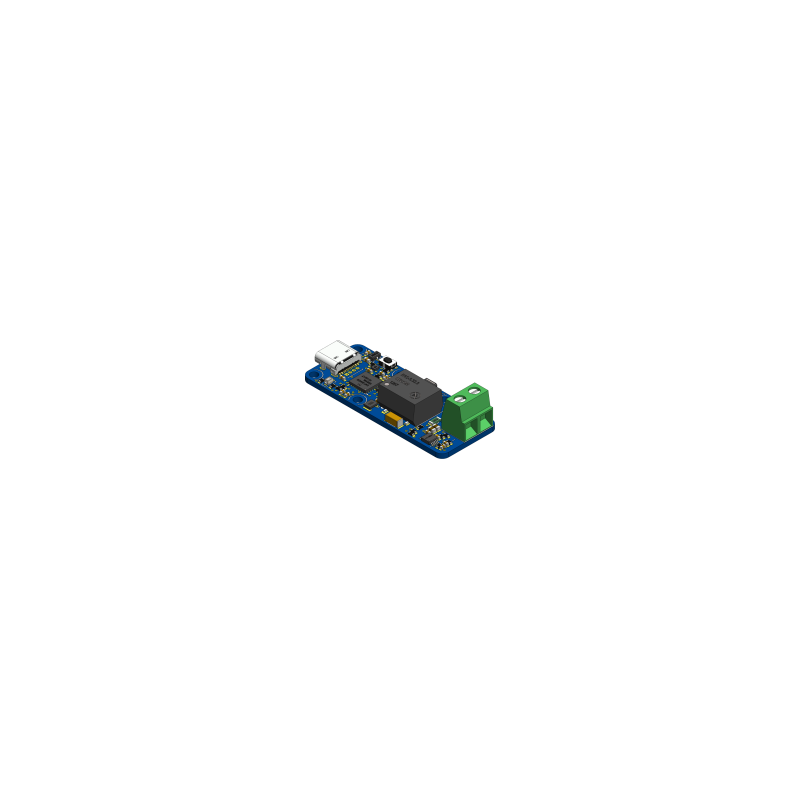

Yocto-Volt-C
This tiny device is an isolated voltage sensor, for both AC and DC. It is electrically isolated, and includes a built-in data logger. You can add Ethernet, Wireless or GSM connectivity to this device.
This device is a digital USB voltmeter that allows you to measure voltage automatically. It can provide quite accurate digital measures for low DC voltage (0.01 Volt accuracy), but works as well for higher voltage, including AC, up to 250V (RMS), with an accuracy of 3%.
This device is isolated, which means that the sensor part is electrically disconnected from the USB part: you can measure any voltage difference between -250V and 250V, without risk of frying your computer.
The module provides immediate reading on USB, and can also store measures on the device internal flash for later retrieval when connected again by USB.
This module is the equivalent of the Yocto-Volt, but with a USB type-C connector. Both versions can be connected to a USB A, Type C or Micro-B host with the appropriate cable.
This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-n and to a GSM network using a YoctoHub-GSM.
-
Brand
-
ReferenceVLTAGE1C
Data sheet
-
Width20mm
-
Length50mm
-
Weight6g
-
USB connectorUSB-C
-
Refresh rate10Hz
-
Measuring range-250...250V DC/rms
-
AccuracyAC (50Hz/60Hz) 0.1V / 1%
DC 0.01V / 0.5% -
Sensitivity0.01V 0.2%
-
USB bus insulation1.5kV r.m.s.
-
Max working voltage250V AC
-
Normal operating temperature5...40°C
-
Extended operating temperature-30...85°C
-
Supported Operating SystemsWindows (PC + IoT), Linux (Intel + ARM), macOS, Android
-
Driversno driver needed
-
RoHSRoHS III (2011/65/UE+2015/863)
-

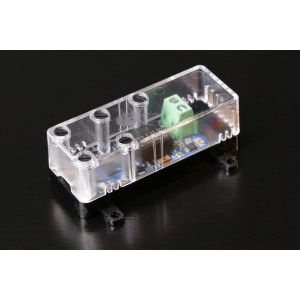

Suggested enclosureYoctoBox-Long-Thick-Black
-
Made inSwitzerland
-
Harmonized tariff code9032.9000
