Yocto-Bridge-C
  • Yocto-Bridge-C
  • Yocto-Bridge-C
  • Yocto-Bridge-C
  • Yocto-Bridge-C

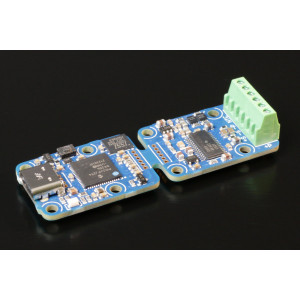

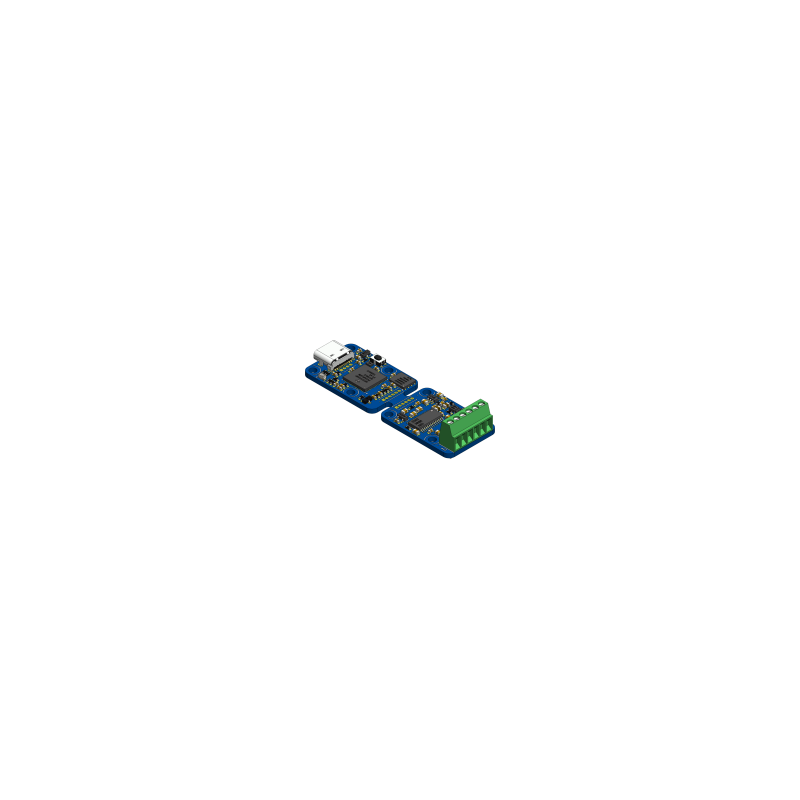

Yocto-Bridge-C

YWBRDG1C
Yoctopuce

USB device to precisely measure a ratiometric signal as produced by a load cell, strain gauge or other sensor with a Wheatstone bridge output. The device includes zero-tracking, temperature compensation and a built-in datalogger. You can add Ethernet, Wireless or GSM connectivity to this device.

€100.97
Tax excluded
2 weeks
Quantity
On demand

  Secure Payment

Pay by credit card (Visa, Mastercard) via PayPlug or by bank transfer.

  Free shipping over 1500 EUR

Fast delivery across Europe. Free shipping for orders over 1,500 EUR.

  B2B specialist support

Technical support available 5/7. We use these products in our own monitoring projects.

Description

The Yocto-Bridge-C is a precision ratiometric analog/digital converter to measure over USB the very weak voltage produced by a load cell, as used in weighing scales, or any other type of strain sensor, or other sensor with a Wheatstone bridge output.

The measure is performed by a 32 bit A/D with built-in preamplifier and FIR filter, which allows for a sensitivity of a few nV/V. The device includes a built-in temperature sensor, which can be internal or external NTC, to cancel temperature drift inherent to load cells, both in offset and span. The Yocto-Bridge-C can also apply AC excitation to cancel thermocouple effects, and perform zero tracking for simple applications where the measured signal frequently comes back to zero.

This version includes a single ratiometric input. If you intend to build a weighing scale with four load cells, you can use the Yocto-MaxiBridge instead, which includes four ratiometric inputs.

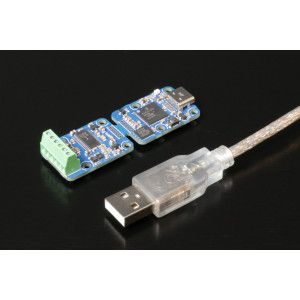

This module is the equivalent of the Yocto-Bridge, but with a USB type-C connector. Both versions can be connected to a USB A, Type C or Micro-B host with the appropriate cable.

This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-n and to a GSM network using a YoctoHub-GSM.

Product Details
YWBRDG1C

Data sheet

Width
20mm
Length
60mm
Weight
7g
USB connector
USB-C
Channels
1
Refresh rate
2 or 7Hz
Accuracy
(typ.) 10nV/V
Chipset
Texas ADS1263
Excitation voltage
4.7V AC/DC
Normal operating temperature
5...40°C
Extended operating temperature
-30...85°C
Supported Operating Systems
Windows (PC + IoT), Linux (Intel + ARM), macOS, Android
Drivers
no driver needed
RoHS
RoHS III (2011/65/UE+2015/863)
Suggested enclosure
YoctoBox-Long-Thick-Black
