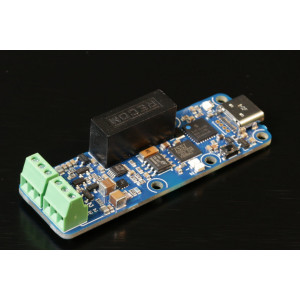

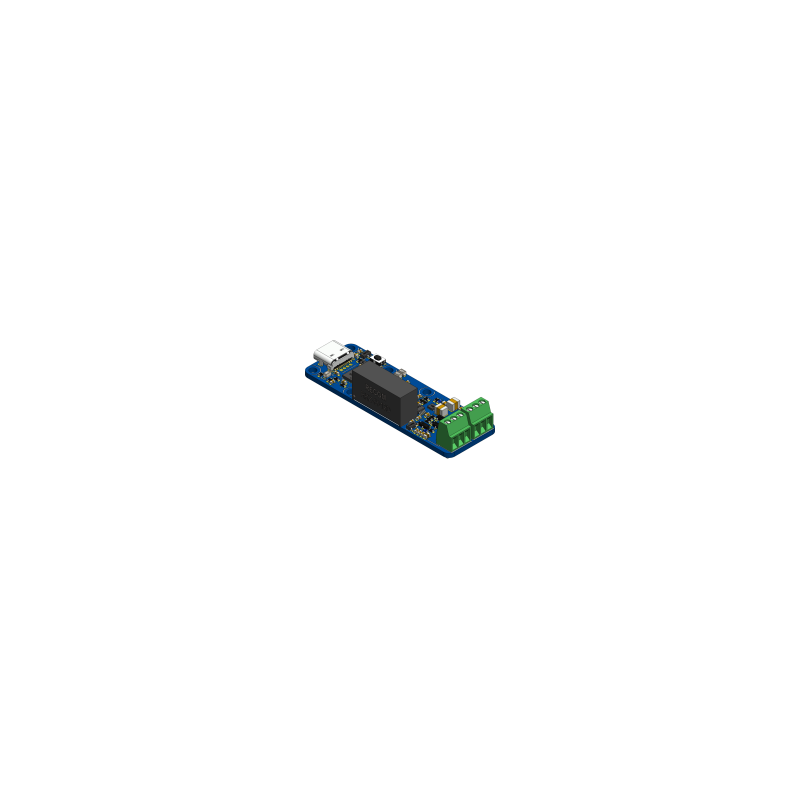

Yocto-0-10V-Rx-C
Small USB module to read the output of two 0-10V sensors. The device can convert the voltage measure to the equivalent physical measure on the fly and includes a built-in data logger. You can add Ethernet, Wireless or GSM connectivity to this device.
The Yocto-0-10V-Rx-C device lets you read via USB the instant value returned by any industrial sensor following the 0-10V standard, as well as record the measures on its internal flash for later retrieval when connected again by USB. The device can automatically map the current reading to a physical measure by applying a proportional rule. The module features two inputs, to connect two independent sensors.
The Yocto-0-10V-Rx-C can provide up to 80mA to power sensors that do not require too much power. The supply voltage is regulated 23V, isolated from the USB bus but common to both inputs.

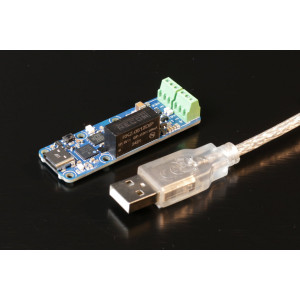

This module is the equivalent of the Yocto-0-10V-Rx, but with a USB type-C connector. Both versions can be connected to a USB A, Type C or Micro-B host with the appropriate cable.
This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-n and to a GSM network using a YoctoHub-GSM.
-
Brand
-
ReferenceRX010V1C
Data sheet
-
Width20mm
-
Length60mm
-
Weight10g
-
USB connectorUSB-C
-
Channels2
-
Refresh rate50Hz
-
Measuring range0...10V
-
Accuracy0.1%
-
USB bus insulation1kV
-
Input impedance10KΩ
-
Normal operating temperature5...40°C
-
Extended operating temperature-30...85°C
-
Supported Operating SystemsWindows (PC + IoT), Linux (Intel + ARM), macOS, Android
-
Driversno driver needed
-
RoHSRoHS III (2011/65/UE+2015/863)
-
Suggested enclosureYoctoBox-Long-Thick-Black-Vents
-
Made inSwitzerland
-
Harmonized tariff code9032.9000
