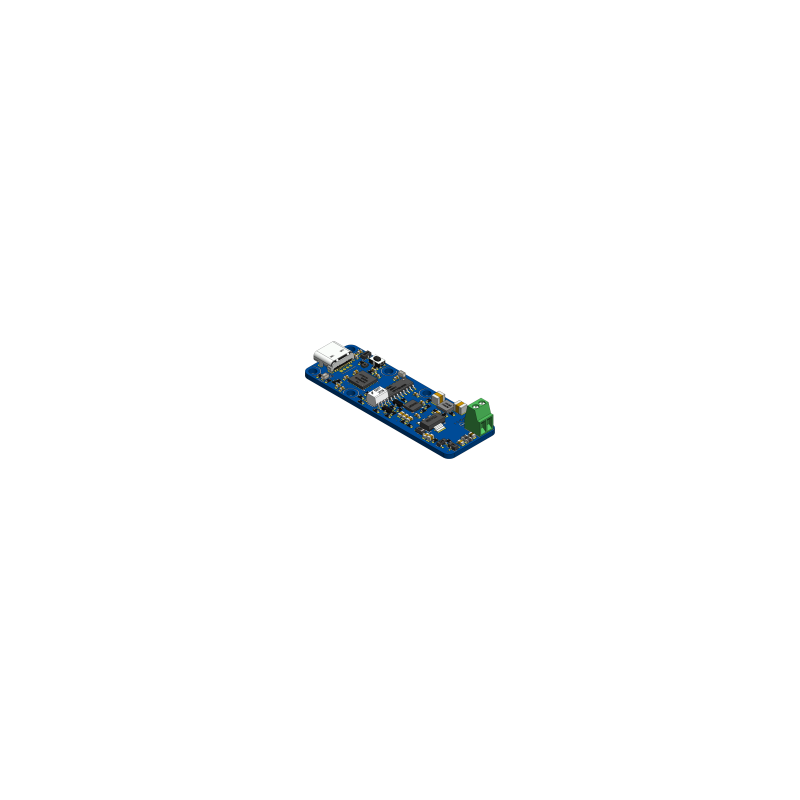

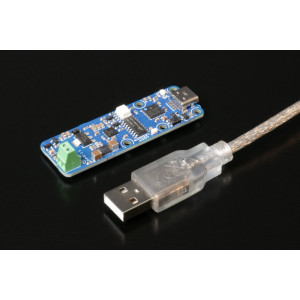

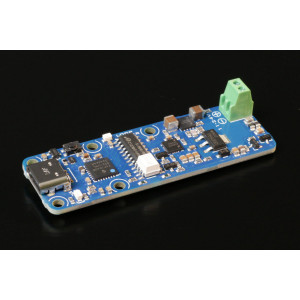

Yocto-4-20mA-Tx-V2-C
USB (Type-C) 4-20mA generator. This is what you need to control by USB any device featuring a 4-20mA input. You can add Ethernet, Wireless or GSM connectivity to this device.
The Yocto-4-20mA-Tx-V2-C is a USB 4-20mA signal generator. With this device, you can drive any other device featuring a 4-20mA input. This is an isolated device: the USB part is electrically isolated from the current loop part. The Yocto-4-20mA-Tx-V2-C can drive any current loop powered from 12 to 24V with a 0.1% accuracy. Icing on the cake, the device can detect if the loop is powered or not.
The Yocto-4-20mA-Tx-V2-C module is only available with a USB Type-C connector. If you prefer USB Micro-B connectivity, have a look at the Yocto-4-20mA-Tx.
This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-n and to a GSM network using a YoctoHub-GSM.
-
Brand
-
ReferenceTX420V2C
Data sheet
-
Width20mm
-
Length60mm
-
Weight10g
-
USB connectorUSB-C
-
USB bus insulation1kV
-
Operating voltage11-24V DC
-
Normal operating temperature5...40°C
-
Extended operating temperature-30...85°C
-
Supported Operating SystemsWindows (PC + IoT), Linux (Intel + ARM), macOS, Android
-
Driversno driver needed
-
RoHSRoHS III (2011/65/UE+2015/863)
-
Suggested enclosureYoctoBox-Long-Thick-Black-Vents
-
Made inSwitzerland
-
Harmonized tariff code9032.9000
