Yocto-MaxiBridge-C

Reference : WMBRDG1C Brand Yoctopuce
Price: €137.21
Tax excluded i.e. €164.65 incl. VAT
Ships in 3-5 business days

USB device to precisely measure up to 4 ratiometric signals as produced by load cells, strain gauges or other sensors with a Wheatstone bridge output. The device includes zero-tracking, temperature compensation and a built-in datalogger. You can add Ethernet, Wireless or GSM connectivity to this device.

Product availability: On backorder
Secure payment Fully secure transactions
No minimum order Order from 1 unit
Support 5/7 Our specialists answer you
CB Visa Mastercard Bank transfer

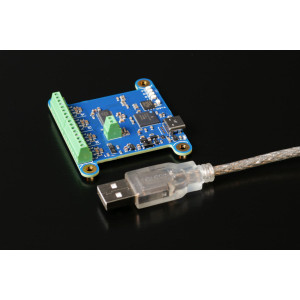

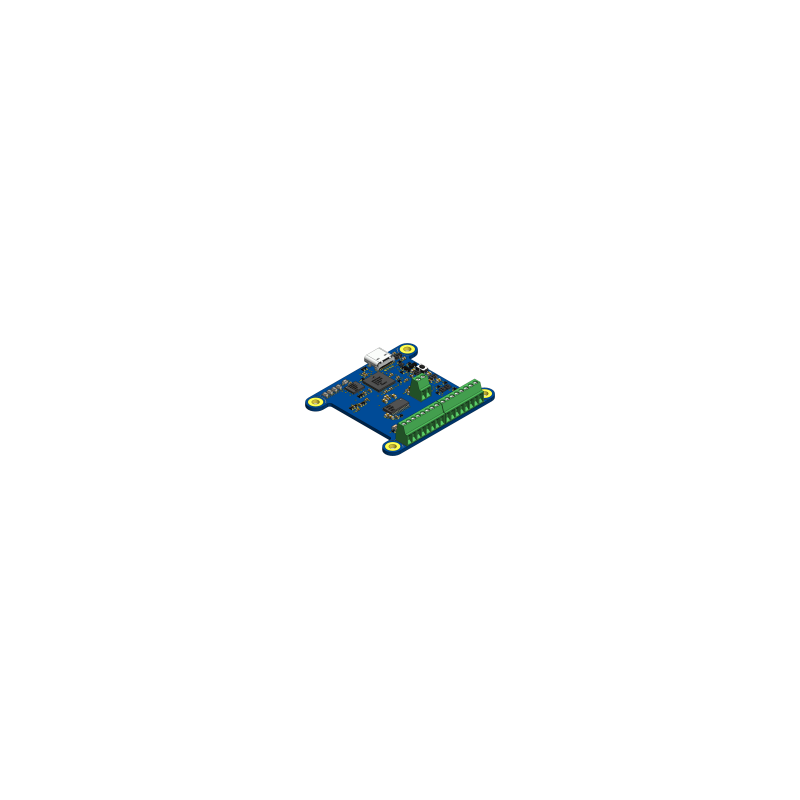

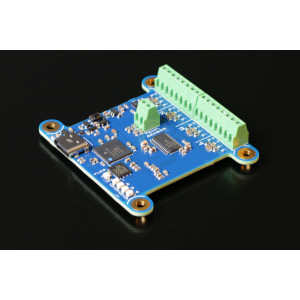

The Yocto-MaxiBridge-C is a precision ratiometric analog/digital converter to measure over USB the very weak voltage produced by load cells used in weighing scales, or any other type of strain sensor, or other sensor with a Wheatstone bridge output.

The measure is performed by a 32 bit A/D with built-in preamplifier and FIR filter, which allows for a sensitivity of a few nV/V. The device includes a built-in temperature sensor, which can be internal or external NTC, to cancel temperature drift inherent to load cells, both in offset and span. The Yocto-MaxiBridge-C can also apply AC excitation to cancel thermocouple effects, and perform zero tracking for simple applications where the measured signal frequently comes back to zero.

This version includes four ratiometric inputs, which are measured in round-robin loop, to let you easily build a weighing scale with 3 or 4 load cells. If you only need one ratiometric input, you can use the Yocto-Bridge, which is smaller and less expensive.

This module is the equivalent of the Yocto-MaxiBridge, but with a USB type-C connector. Both versions can be connected to a USB A, Type C or Micro-B host with the appropriate cable.

This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-n and to a GSM network using a YoctoHub-GSM.

  • Brand
  • Reference
    WMBRDG1C

Data sheet

  • Width
    58.3mm
  • Length
    50mm
  • Weight
    15g
  • USB connector
    USB-C
  • Channels
    1
  • Refresh rate
    2 or 7Hz
  • Accuracy
    (typ.) 10nV/V
  • Chipset
    Texas ADS1263
  • Excitation voltage
    4.7V AC/DC
  • Normal operating temperature
    5...40°C
  • Extended operating temperature
    -30...85°C
  • Supported Operating Systems
    Windows (PC + IoT), Linux (Intel + ARM), macOS, Android
  • Drivers
    no driver needed
  • RoHS
    RoHS III (2011/65/UE+2015/863)

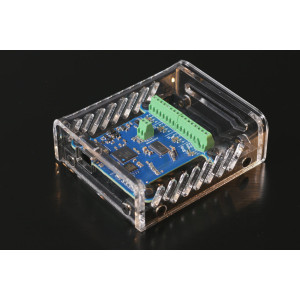

  • Suggested enclosure
    YoctoBox-MaxiIO-Transp
  • Made in
    Switzerland
  • Harmonized tariff code
    9032.9000
