Yocto-PWM-Rx
  • Yocto-PWM-Rx
  • Yocto-PWM-Rx
  • Yocto-PWM-Rx
  • Yocto-PWM-Rx

Yocto-PWM-Rx

YPWMRX01
Yoctopuce
Rating

That isolated device can decode PWM signals. It can be used as a pulse counter as well. You can add Ethernet, Wireless or GSM connectivity to this device.

€63.88
Tax excluded
3-5 days
Quantity
In stock

Secure Payment Pay by credit card (Visa, Mastercard) via PayPlug or by bank transfer.
Free shipping over 1500 EUR Fast worldwide delivery. Free shipping for orders over 1,500 EUR excl. tax.
B2B specialist support Technical support available 5/7. We use these products in our own monitoring projects.
CB Visa Mastercard Bank Transfer
Description

The Yocto-PWM-Rx is a 2 channels PWM input. Each channel can report frequency, duty cycle, and pulse length. It works from 0.05Hz to 250Khz and accepts any -30..+30V signal as long as it crosses the 0.7V threshold.

Each channel also features a pulse counter linked to a time counter. This allows to integrate over time the output of sensors such as flow-meters. The pulse counter works from 0 to 250kHz.

The two PWM inputs are galvanically insulated from the USB bus. This will allow you to connect the Yocto-PWM-Rx to main-powered equipments without risking to fry your computer.

This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-g, it can even be connected to a GSM network thanks to the YoctoHub-GSM.

USB cables and enclosure to be ordered separately.

Product Details
YPWMRX01

Data sheet

Width
20mm
Length
54mm
Weight
7g
USB connector
micro-B
Channels
2
Refresh rate
50Hz
USB bus insulation
1kV
Input impedance
110KΩ
Max working voltage
-30 ... +30V
Threshold voltage
0.7V
Frequency
0.05 ... 250'000Hz
Normal operating temperature
5...40°C
Extended operating temperature
-30...85°C
Supported Operating Systems
Windows (PC + IoT), Linux (Intel + ARM), macOS, Android
Drivers
no driver needed
RoHS
Yes
Suggested enclosure
YoctoBox-Long-Thick-Black
Reviews
Grade
Alex — Phoenix Contact
12/20/2025

Reliability as expected

Used to control our test equipment. Reliability has been consistent through several thousand cycles.

Grade
P. Wright
12/12/2025

Easy onboarding

Provided code examples are clear and functional. Our junior engineers managed the integration.

Grade
Kenneth Müller
05/14/2025

Good control module

Responsive and precise. The API provides fine-grained control suited to our test automation.

13 other products in the same category:
Yocto-I2C Quick view

Reference: YI2CMK01

Brand: Yoctopuce

Yocto-I2C

Review(s): 1
USB to I2C master adapter, with built-in data logger. Works without driver. You can add Ethernet, Wireless or GSM connectivity to this device.
€52.93
More
On demand

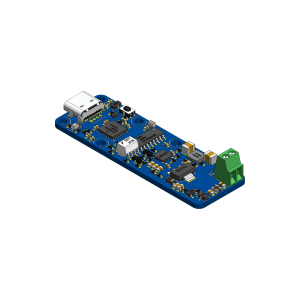

New Yocto-4-20mA-Tx-V2-C Quick view

Reference: TX420V2C

Brand: Yoctopuce

Yocto-4-20mA-Tx-V2-C

Review(s): 0
USB (Type-C) 4-20mA generator. This is what you need to control by USB any device featuring a 4-20mA input. You can add Ethernet, Wireless or GSM connectivity to this device.
€52.93
More
On demand

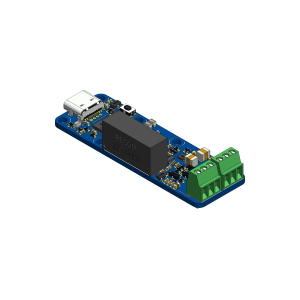

New Yocto-0-10V-Rx-C Quick view

Reference: RX010V1C

Brand: Yoctopuce

Yocto-0-10V-Rx-C

Review(s): 0
Small USB module to read the output of two 0-10V sensors. The device can convert the voltage measure to the equivalent physical measure on the fly and includes a built-in data logger. You can add Ethernet, Wireless or GSM connectivity to this device.
€98.06
More
In stock
Yocto-4-20mA-Rx Quick view

Reference: RX420MA1

Brand: Yoctopuce

Yocto-4-20mA-Rx

Review(s): 3
Small USB module to read very precisely the output of two 4-20mA sensors. The device can convert the current measure to the equivalent physical measure on the fly, and includes a built-in datalogger. You can add Ethernet, Wireless or GSM connectivity to this device.
€98.06
More
In stock
Yocto-Serial Quick view

Reference: YSERIAL1

Brand: Yoctopuce

Yocto-Serial

Review(s): 2
USB to SPI adapter (3.3V or 5V), with built-in data analyser. Works without driver and without COM port. You can add Ethernet, Wireless or GSM connectivity to this device.
€66.75
More
On demand
Yocto-RS232 Quick view

Reference: RS232MK1

Brand: Yoctopuce

Yocto-RS232

Review(s): 2
That device can generate two distinct PWM signals using a frequency between 1Hz and 1Mhz. You can add Ethernet, Wireless or GSM connectivity to this device.
€76.31
More
In stock
Yocto-0-10V-Tx Quick view

Reference: TX010V01

Brand: Yoctopuce

Yocto-0-10V-Tx

Review(s): 5
Isolated dual 0-10V signal generator. This is what you need to control by USB any device using a 0-10V input signal, such as dimmable LED drivers. You can add Ethernet, Wireless or GSM connectivity to this device.
€90.36
More
In stock
Yocto-SPI Quick view

Reference: YSPIMK01

Brand: Yoctopuce

Yocto-SPI

Review(s): 1
USB to SPI adapter (3.3V or 5V), with built-in data analyser. Works without driver and without COM port. You can add Ethernet, Wireless or GSM connectivity to this device.
€50.88
More
On demand
Yocto-0-10V-Rx Quick view

Reference: RX010V01

Brand: Yoctopuce

Yocto-0-10V-Rx

Review(s): 3
Small USB module to read the output of two 0-10V sensors. The device can convert the voltage measure to the equivalent physical measure on the fly, and includes a built-in datalogger.
€96.67
More
In stock
New Yocto-RS232-C Quick view

Reference: RS232M1C

Brand: Yoctopuce

Yocto-RS232-C

Review(s): 0
That device can generate two distinct PWM signals using a frequency between 1Hz and 1Mhz. You can add Ethernet, Wireless or GSM connectivity to this device.
€76.54
More
On demand
Yocto-RS485-V2 Quick view

Reference: RS485MK2

Brand: Yoctopuce

Yocto-RS485-V2

Review(s): 2
USB to RS485 insulated adapter, with built-in MODBUS support. Works without driver and without COM port. You can add Ethernet, Wireless or GSM connectivity to this device.
€90.36
More
On demand

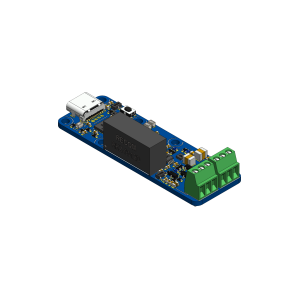

New Yocto-4-20mA-Rx-C Quick view
