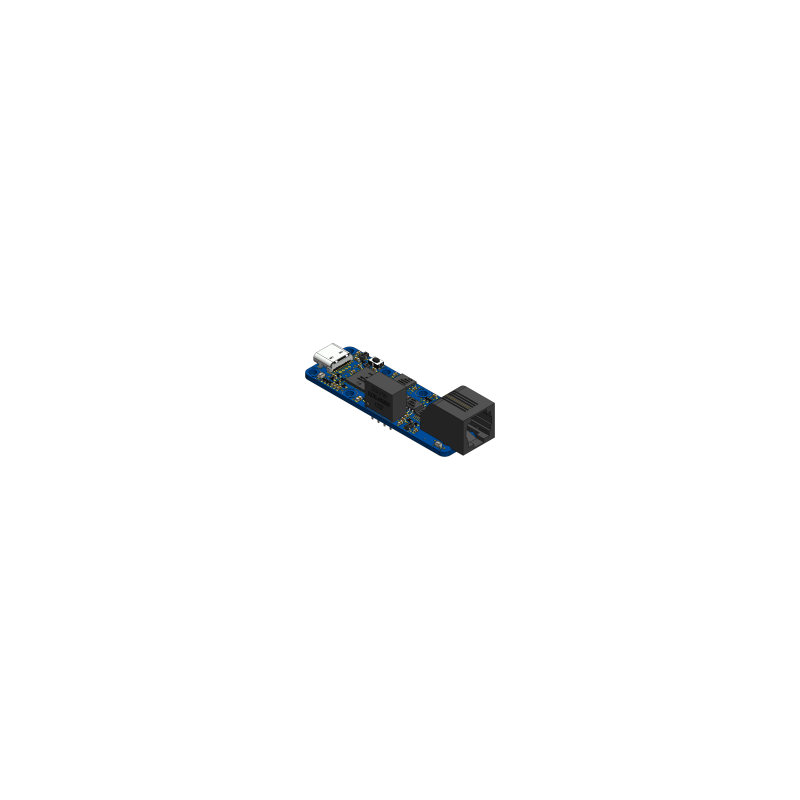

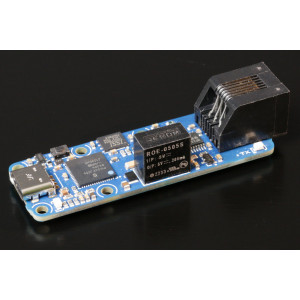

Yocto-RS232-C

Reference : RS232M1C Brand Yoctopuce
Price: €80.40
Tax excluded i.e. €96.48 incl. VAT
Ships in 3-5 business days

That device can generate two distinct PWM signals using a frequency between 1Hz and 1Mhz. You can add Ethernet, Wireless or GSM connectivity to this device.

Product availability: Last items in stock
Secure payment Fully secure transactions
No minimum order Order from 1 unit
Support 5/7 Our specialists answer you
CB Visa Mastercard Bank transfer

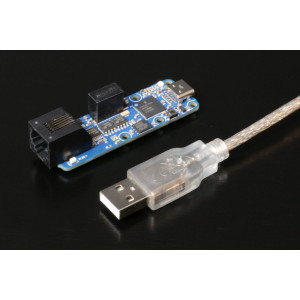

This device is a USB to RS232 adapter, that does not require a driver and does not install a virtual COM port.

It can autonomously interpret serial data coming from any RS232 appliance and expose measures as if they were coming from a Yoctopuce sensor, with all the inherent advantages: unique identifier, polling, callbacks, data logger. Be aware that this device does not work with applications designed to use a COM port: it is designed to be used with the Yoctopuce API only.

The device is electrically isolated, which means that it can be connected without risk to an appliance powered on a different circuit. The Yocto-RS232-C conforms to the TIA/EIA-232-F standard (-5.5V and 5.5V output, and up to -25V... +25V as input). It is therefore compatible with all standard RS232 interfaces, but it cannot be wired directly to chips using logical CMOS/TTL levels.

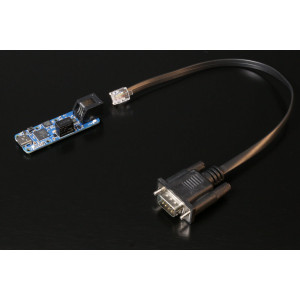

The RJ12 to DB9 adapter for bidirectional communication (including CTS/RTS) is included.

The device can also analyze an RS232 bidirectional communication between two tiers without interference (using two input channels), but the adapter for this usage is not included (check the accessory list below).

If you need to interface a serial port working with CMOS/TTL levels, choose a Yocto-Serial.

This module is the equivalent of the Yocto-RS232, but with a USB type-C connector. Both versions can be connected to a USB A, Type C or Micro-B host with the appropriate cable.

This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-n and to a GSM network using a YoctoHub-GSM.

  • Brand
  • Reference
    RS232M1C

Data sheet

  • Width
    20mm
  • Length
    60mm
  • Weight
    36g
  • USB connector
    USB-C
  • USB bus insulation
    1kV
  • Chipset
    MAX3232
  • Max frequency
    115200bps
  • Buffer
    16KB
  • Normal operating temperature
    5...40°C
  • Extended operating temperature
    -25...85°C
  • Supported Operating Systems
    Windows (PC + IoT), Linux (Intel + ARM), macOS, Android
  • Drivers
    no driver needed
  • RoHS
    RoHS III (2011/65/UE+2015/863)
  • Suggested enclosure
    YoctoBox-Long-Thick-Black-RS232
  • Made in
    Switzerland
  • IEC protection class
    class III
  • Harmonized tariff code
    9032.9000
  • API / SDK / Librairie
    C++ Obj-C C# VB.NET UWP Delphi Python Java Android LabVIEW
  • API / SDK / Librairie (seul.TCP)
    Javascript Node.js PHP
