Yocto-PowerRelay-V2-C

Reference : RLAYHI2C Brand Yoctopuce
Price: €29.62
Tax excluded i.e. €35.54 incl. VAT
Ships in 3-5 business days

USB interface driving an electromechanical power relay able to directly switch loads up to 5A. You can add Ethernet, Wireless or GSM connectivity to this device. This module is available in several connector variants...

Product availability: In stock
Secure payment Fully secure transactions
No minimum order Order from 1 unit
Support 5/7 Our specialists answer you
CB Visa Mastercard Bank transfer

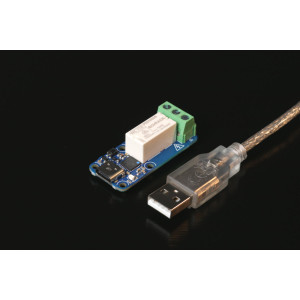

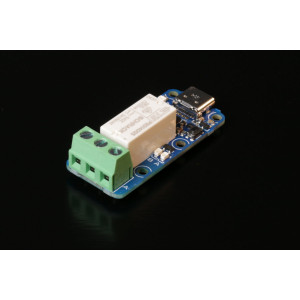

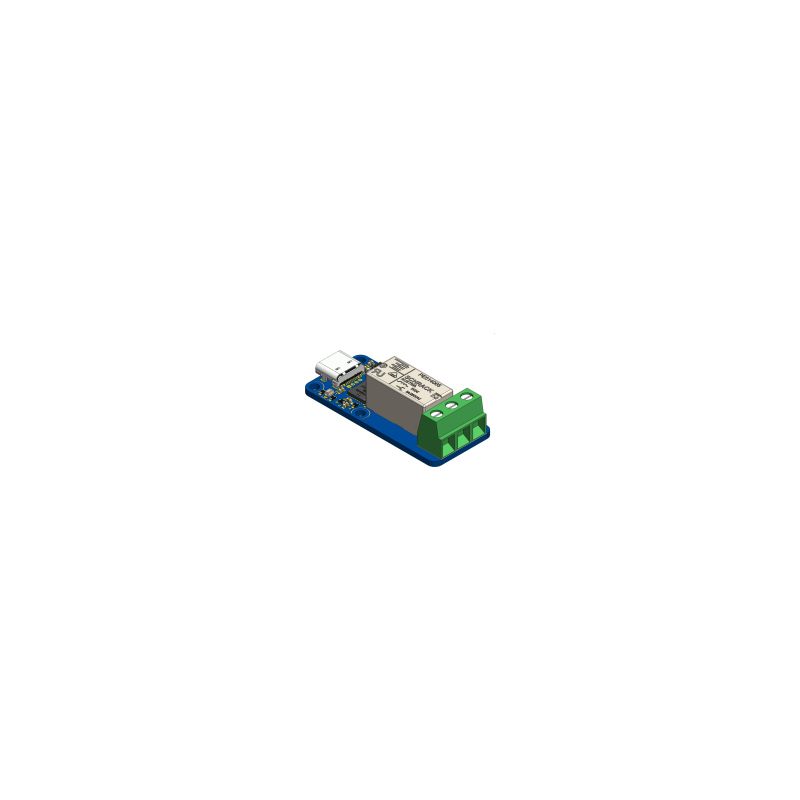

The Yocto-PowerRelay-V2-C is a small USB power relay. It contains a USB-driven SPDT power relay switch: you can drive by software the relay input to one of the two outputs. To make it easier to test your project, two LEDs show the currently active output.

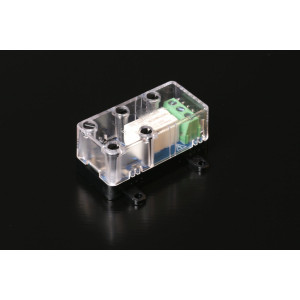

This device only includes a single relay, but it can drive higher loads than the Yocto-Relay. The relay and the connector can stand a current of 5A. When put into an enclosure, the Yocto-PowerRelay-V2-C can be used to directly switch hazardous live mains circuits up to 150 V r.m.s., and even up to 250 V AC r.m.s. for secondary circuits. Note that the Yocto-PowerRelay-V3 is more appropriate to switch loads connected to the mains.

Be aware that using a relay to drive inductive loads (motors, transformers) may lead to accelerated aging of the relay. Please refer to the documentation for hints on reducing this type of problems.

This module is the equivalent of the Yocto-PowerRelay-V2, but with a USB type-C connector. Both versions can be connected to a USB A, Type C or Micro-B host with the appropriate cable.

This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-n and to a GSM network using a YoctoHub-GSM.

  • Brand
  • Reference
    RLAYHI2C

Data sheet

  • Width
    20mm
  • Length
    45mm
  • Weight
    12g
  • USB connector
    USB-C
  • Channels
    1
  • Max working voltage
    150V AC
  • Max withholding voltage
    1000V AC
  • Max switching power
    1250VA
  • Max switching current
    5A
  • Normal operating temperature
    5...40°C
  • Extended operating temperature
    -30...85°C
  • Supported Operating Systems
    Windows (PC + IoT), Linux (Intel + ARM), macOS, Android
  • Drivers
    no driver needed
  • Suggested enclosure
    YoctoBox-Long-Thick-Black
  • Made in
    Switzerland
  • IEC protection class
    Classe II
  • Harmonized tariff code
    9032.9000
  • Relay type
    TE PE014005
  • Operate time
    10ms (max)
  • Release time
    10ms (max)
  • USB insulation, clearance dist.
    3.2mm
  • USB insulation, creepage dist.
    4mm
  • Compliance
    RoHS III (2011/65/UE+2015/863)
  • API / SDK / Librairie
    C++ Obj-C C# VB.NET UWP Delphi Python Java Android LabVIEW
  • API / SDK / Librairie (seul.TCP)
    Javascript Node.js PHP
