UFL-Wlan-Antenna
€7.45
2 weeks

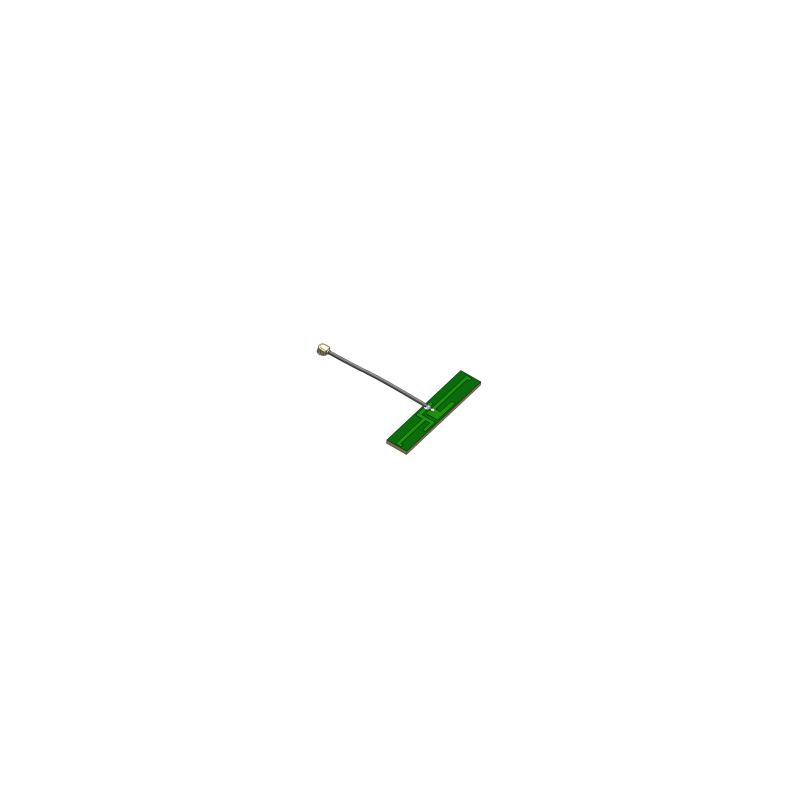

This tiny PCB antenna will make it possible to use your YoctoHub-Wireless-n in a small enclosure without visible antenna. It is only 42mm long, and includes a sticker to fix it on the enclosure.
This tiny PCB antenna will make it possible to use your YoctoHub-Wireless-n in a small enclosure without visible antenna. It is only 42mm long, and includes a sticker to fix it on the enclosure.
Be aware of the fact that this antenna has a vertical polarization: the best transmission quality is obtained on the straight line perpendicular to the PCB plan.
This antenna is made by Delock (article 86246).
UFLWLAN1
Data sheet
- Thickness
- 1.6mm
- Width
- 7.7mm
- Length
- 42mm
- Weight
- 3.5g
- Frequency
- 2.4...2.5 + 4.9...5.825MHz
- Normal operating temperature
- 5...40°C
- Extended operating temperature
- -10...55°C
- RoHS
- ROHS II (2011/65/EU)
- Made in
- China
- Harmonized tariff code
- 8544.4290
- Connections
- U.FL (IPEX) MHF I plug
