Yocto-MaxiPowerRelay

€57.60
Tax excluded 2 weeks

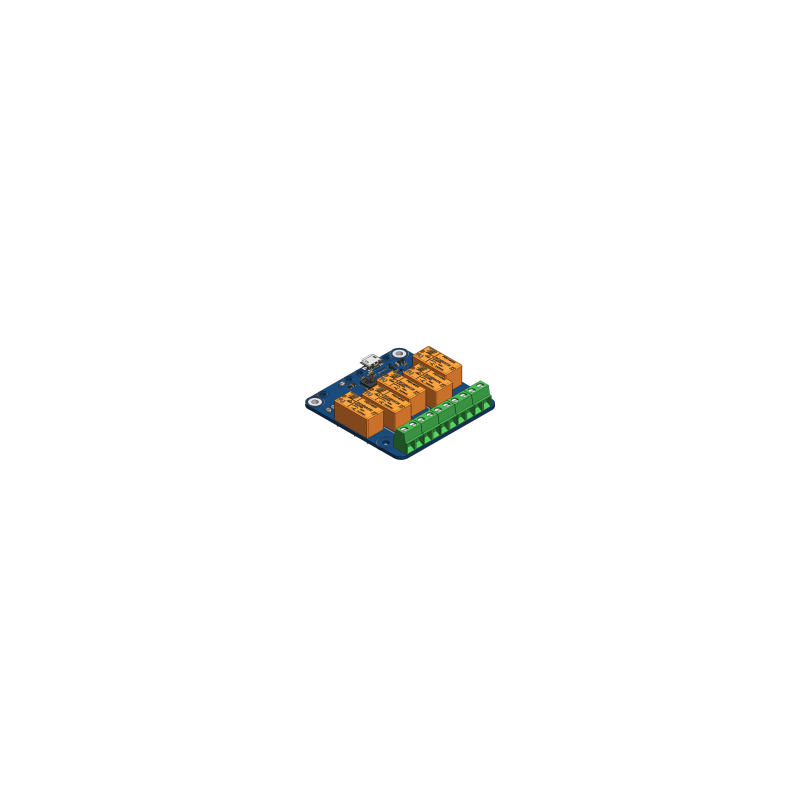

Compact USB interface driving five electromagnetic relays capable of switching directly mains powered appliances, up to 1250W per channel. You can add Ethernet, Wireless or GSM connectivity to this device.

Quantity
On demand

You need several USB relays in a tight form factor ? The Yocto-MaxiPowerRelay controls 5 relays. Each of these relay can handle up to 250V and 5 Amp. The relay state is reflected by a LED. This module does not need external power, but the host computer or the hub to which the module is connected must be able to provide up to 250 mA.

This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-g, it can even be connected to a GSM network thanks to the YoctoHub-GSM.

USB cables and enclosure to be ordered separately.

* *
MXPWRRLY

Data sheet

Width
58mm
Length
59mm
Weight
50g
USB connector
micro-B
Channels
5
USB consumption
~250mA
USB bus insulation
3kV
Hardware release
Rev. B
Max working voltage
250V AC
Max withholding voltage
1.5 kV
Max switching power
1250W
Max switching current
5A
Normal operating temperature
5...40°C
Extended operating temperature
-30...85°C
Supported Operating Systems
Windows (PC + IoT), Linux (Intel + ARM), macOS, Android
Drivers
no driver needed
RoHS
Yes
Suggested enclosure
YoctoBox-MaxiIO-Transp
Made in
Switzerland
*
