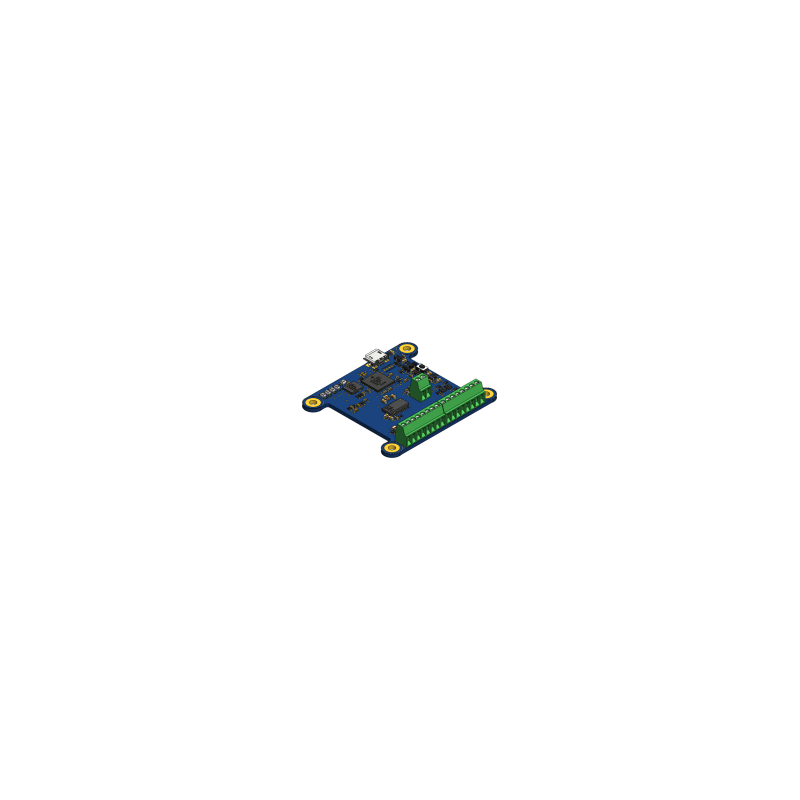

Yocto-MaxiBridge

€122.79
Tax excluded 2 weeks

USB device to precisely measure up to 4 ratiometric signals as produced by load cells, strain gauges or other sensors with a Wheatstone bridge output. The device includes zero-tracking, temperature compensation and a built-in datalogger. You can add Ethernet, Wireless or GSM connectivity to this device.

Quantity
On demand

The Yocto-MaxiBridge is a precision ratiometric analog/digital converter to measure over USB the very weak voltage produced by load cells used in weighing scales, or any other type of strain sensor or other sensor with a Wheatstone bridge output.

The measure is performed by a 32 bit A/D with built-in preamplifier and FIR filter, which allows for a sensitiity of a few nV/V. The device includes a built-in temperature sensor, which can be internal or external NTC, to cancel temperature drift inherent to load cells, both in offset and span. The Yocto-MaxiBridge can also apply AC excitation to cancel thermocouple effects, and perform zero tracking for simple applications where the measured signal frequently comes back to zero.

This version includes four ratiometric inputs, which are measured in round-robin loop, to let you easily build a weighing scale with 3 or 4 load cells. If you only need one ratiometric input, you can use the Yocto-Bridge, which is smaller and less expensive.

This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-g, it can even be connected to a GSM network thanks to the YoctoHub-GSM.

USB cables and enclosure to be ordered separately.

* *
YWMBRDG1

Data sheet

Width
58.3mm
Length
50mm
Weight
15g
USB connector
micro-B
Channels
1
Refresh rate
2 or 7Hz
Accuracy
(typ.) 10nV/V
Chipset
Texas ADS1263
Excitation voltage
4.7V AC/DC
Normal operating temperature
5...40°C
Extended operating temperature
-30...85°C
Supported Operating Systems
Windows (PC + IoT), Linux (Intel + ARM), macOS, Android
Drivers
no driver needed
RoHS
Yes
Suggested enclosure
YoctoBox-MaxiIO-Transp
Made in
Switzerland
*
